Force Ultra 1000 Garage Door Opener Kit

GARAGE DOOR DRIVE FORCE 1000 ULTRA — UP TO 15 m² ! AVAILABLE FOR COLLECTION IN STORE!

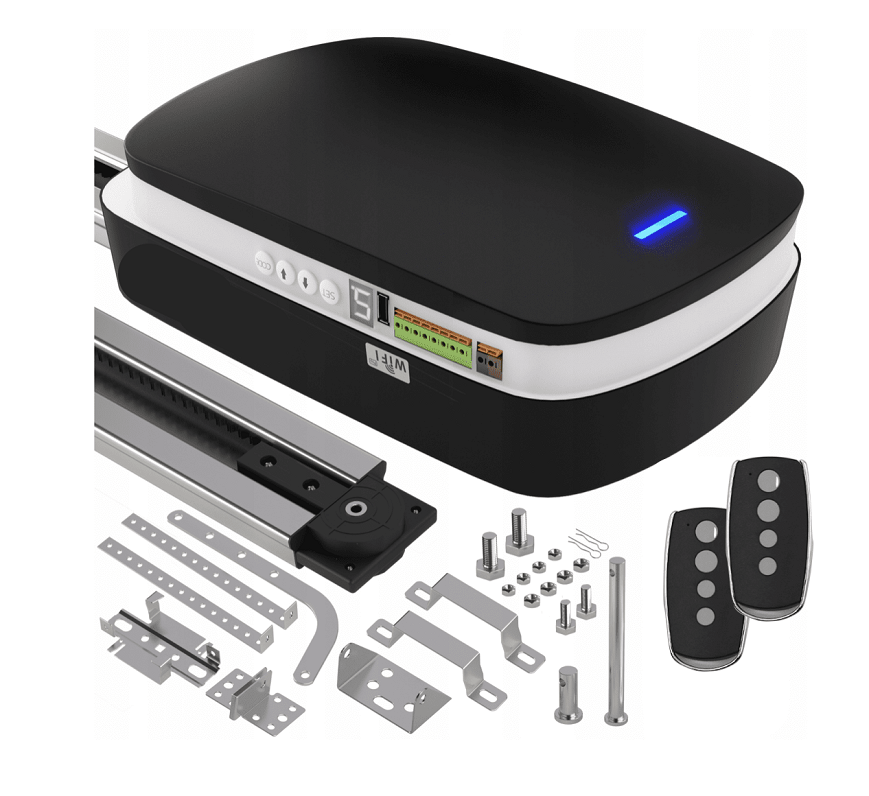

Kit contents:

Force Ultra drive with 1000 N thrust force

2 x 4-channel remote controls

Control unit built into the drive head

Built-in garage lighting — 25W

3.3 m motor rail with toothed belt (supports up to 2.3 m door height)

Trolley with release function

Head mounting bracket — quick assembly

Full set of mounting hardware

Radio receiver built into the control panel

Factory input for optional WiFi controller (sold separately)

Drive features:

High thrust force up to 1000 N, handles gates up to 15 m²

Supports single- and double-bay garage doors, e.g. 5m wide x 2.3m high

Built-in encoder — automatically stops and reverses if obstacle detected

Programmable end stops | Control via push button input | Speed regulation | Garage lighting from start of operation

Technical specifications:

Power supply: 230V (50Hz) | Motor: 24V DC | Thrust force: 1000 N | Torque: 7 Nm | Lifting height: 2.3 m | Weight: 7 kg | Dimensions: 400x210x160 mm | Opening speed: 5.77 m/min | Operating temp.: −20°C to +50°C | Remote range: >30 m | Power: 350 W | Rail length: 3.3 m
