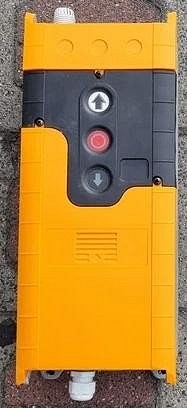

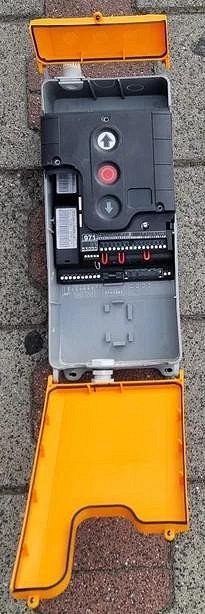

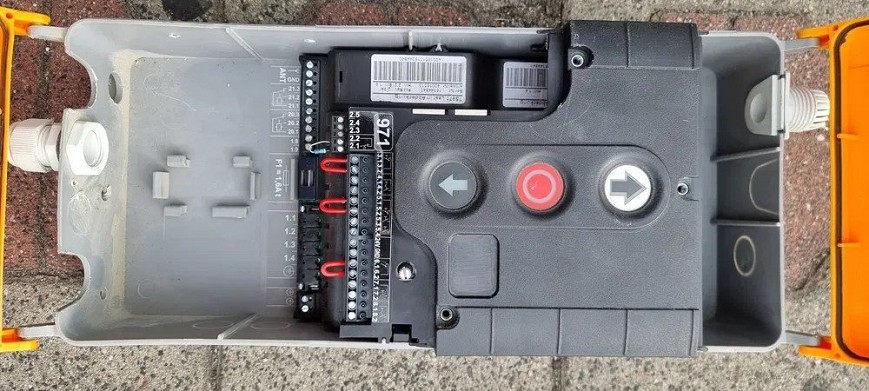

GFA-TS971 Refurbished Control Unit

TS 971 refurbished and tested control units, versions 1.9, 2.2 and 2.3, with 6 months warranty.

GfA TS 971 Control Unit Technical Data:

For GfA motors with DES or NES connections

Supply voltage: 1N~230 V, PE / 3~230 V, PE / 3N~400 V, PE / 3~400 V, PE

Operating frequency: 50 Hz / 60 Hz

Control voltage: 24 V DC

External device power supply: 24 V DC (0.35 A) / 230 V AC (1.6 A)

Permitted temperature range: −10°C to +50°C

Enclosure dimensions W x H x D [mm]: 155 x 386 x 102
